High Temperature Resistant Graphite Paper

Product Introduction

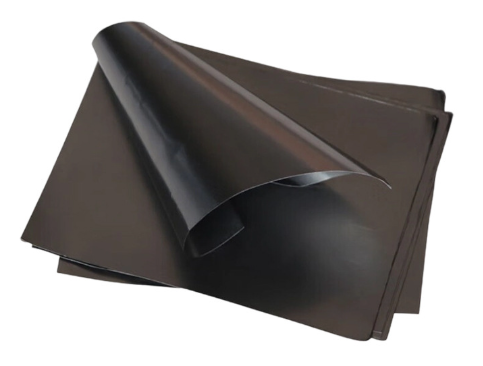

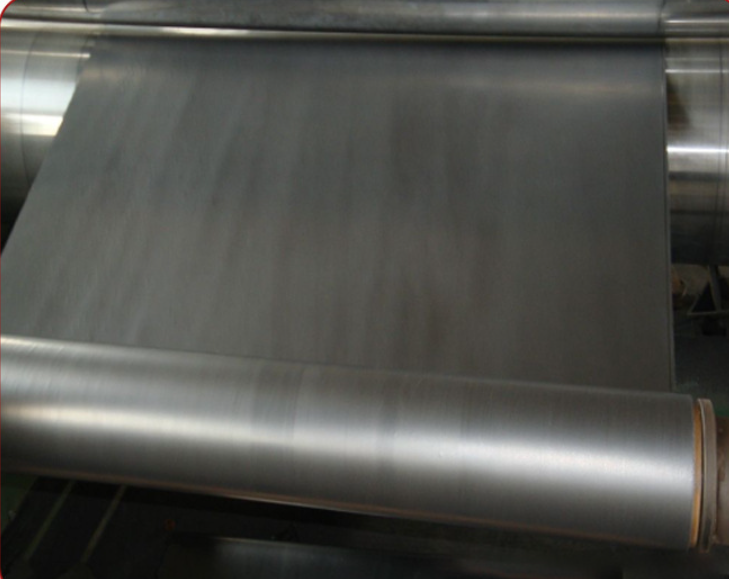

Product Introduction: Graphite paper is made by chemically treating high carbon flake graphite and then expanding and rolling it at high temperatures. It is the basic material for manufacturing various graphite seals.

Appearance features

Smooth appearance, no obvious bubbles, cracks, wrinkles, scratches, impurities or other defects.

Application areas

Used for dynamic and static sealing of machines, pipes, pumps, valves, etc. in industries such as power, petroleum, chemical, instrumentation, machinery, and diamond. It is an ideal new sealing material to replace traditional seals such as rubber, fluoroplastics, asbestos, etc.

Classification of graphite paper

1

Flexible graphite paper;

2

Ultra thin graphite paper

3

Sealed graphite paper；

4

Thermal conductive graphite paper；

5

Conductive graphite paper, etc

Different types of graphite paper can play their due roles in different industrial fields.

Thickness specification

Thickness

0.8mm, 1.0mm, 2.0mm, 3.0mm;

Material form

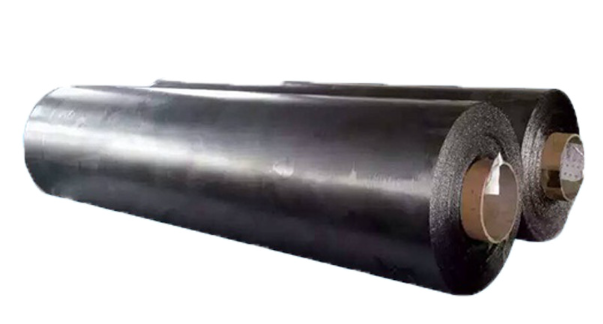

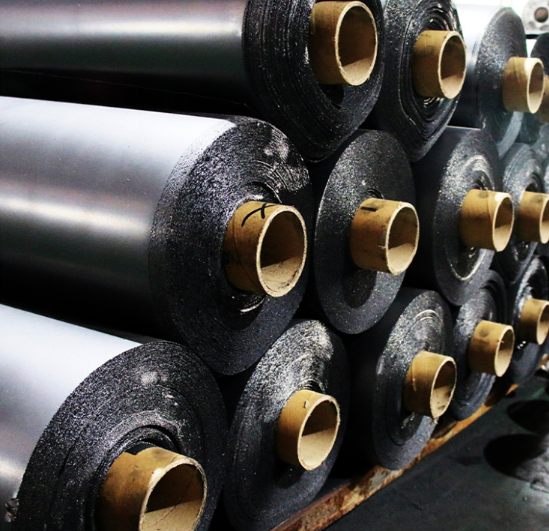

0.8mm, 1.0mm is roll material;

2.0mm and 3.0mm are sheet materials measuring 1.0 * 1.0M.

High temperature resistant graphite paper has the following 6 characteristics

1

Machinability: Graphite paper can be die cut into different sizes, shapes, and thicknesses, and can provide die cut flat boards with thicknesses of 0.8/1.0 and 2.0/3.0mm.

2

High temperature resistance: Graphite paper can be used at temperatures up to 650 ℃ and as low as -40 ℃.

3

High thermal conductivity: The maximum in-plane thermal conductivity of graphite paper can reach 1500W/mK, with a thermal resistance 40% lower than aluminum and 20% lower than copper.

4

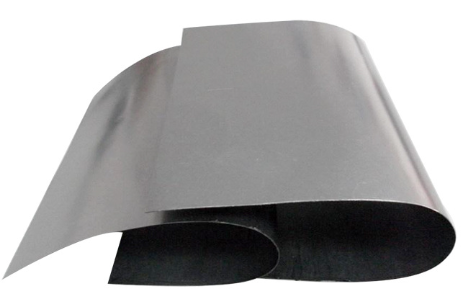

Flexibility: Graphite paper can be easily laminated with metal, insulation layers, or double-sided tape to increase design flexibility, and can have adhesive on the back.

5

Lightweight: Graphite paper is 30% lighter than aluminum of the same size and 80% lighter than copper.

6

Usability: Graphite heat sinks can be smoothly attached to any flat or curved surface.
