CSP-01/03 , Gasket Materials With Controlled Swell Properties

Gasket Material With Controlled Swell Properties
Technical Values
Material Model	CSP-01/03
Basis	Aramid fibers, inorganic fillers，Synthetic or mineral fibers
Binder	NBR-Nitrile Butadiene Rubber
Characteristic	Description
	1. CSP is a soft cushion material with controllable expansion characteristics, which can absorb oil.
	2. It is specially designed for sealing at low surface stress on rough or uneven sealing flanges. The controled swelling of gasket material in such case compensate the loss of specific surface pressure in application.
	3. They have different thermomechanical properties and chemical resistance to endure at different loadings, even the most demanding conditions.
Applicable Medium	Fuel, lubricating oil, transmission oil, engine oil, air, water, low acidity, low alkalinity, etc
Application Field	Gearboxes, Diesel Engines, Air Compressors, Gasoline Engines, Motorcycles, Construction Machinery, General Machinery, Etc.
Application Temperature
Continuous℃	-40℃～300℃
Max. Peak	350℃
Dimensions Of Standard Sheets

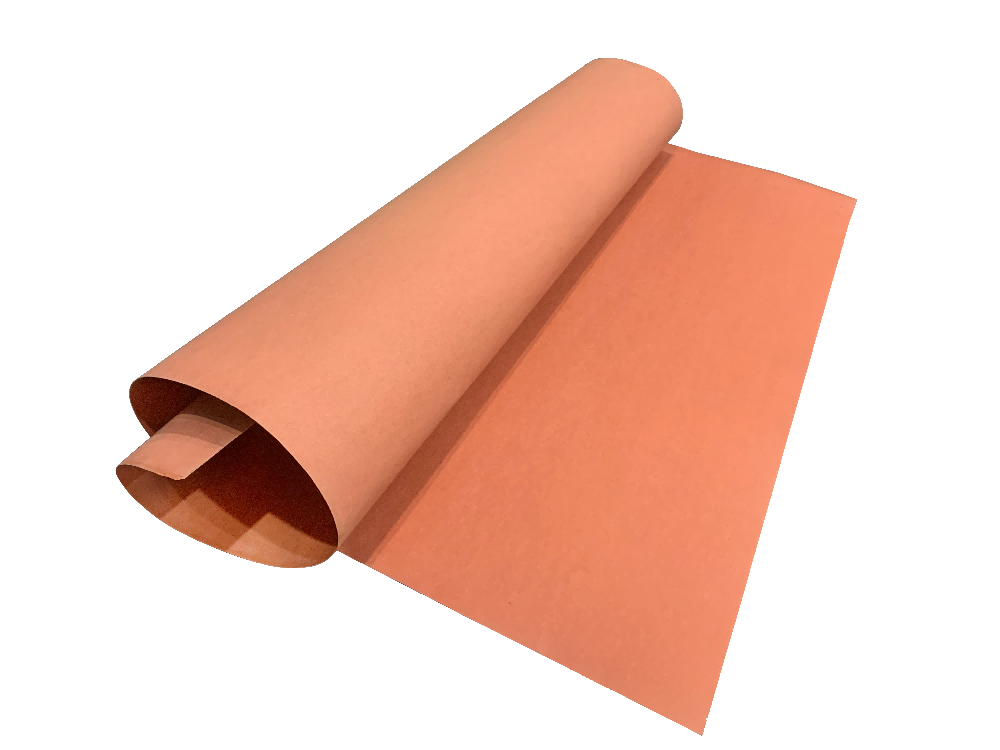

Sheet Size	1000x1200mm, 1000x1000mm
Thickness	0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm (Other thicknesses on request)
Tolerances	Thickness <1mm±0.05mm ；Thickness≥1 mm±0.1mm
Colour	Red
