Oil Resistant Cork Rubber Material
Description:

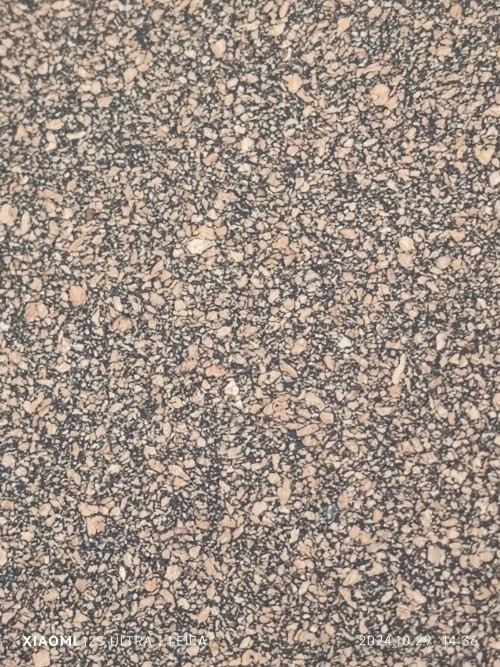

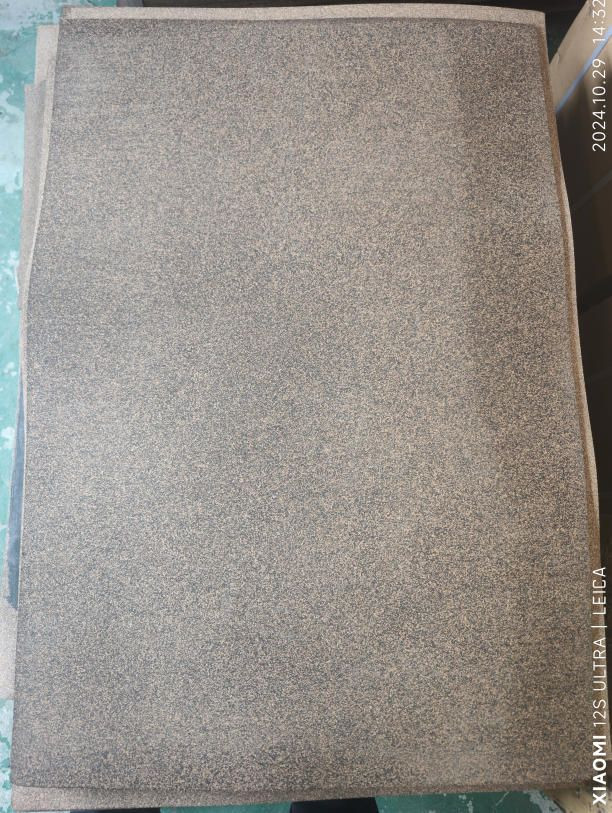

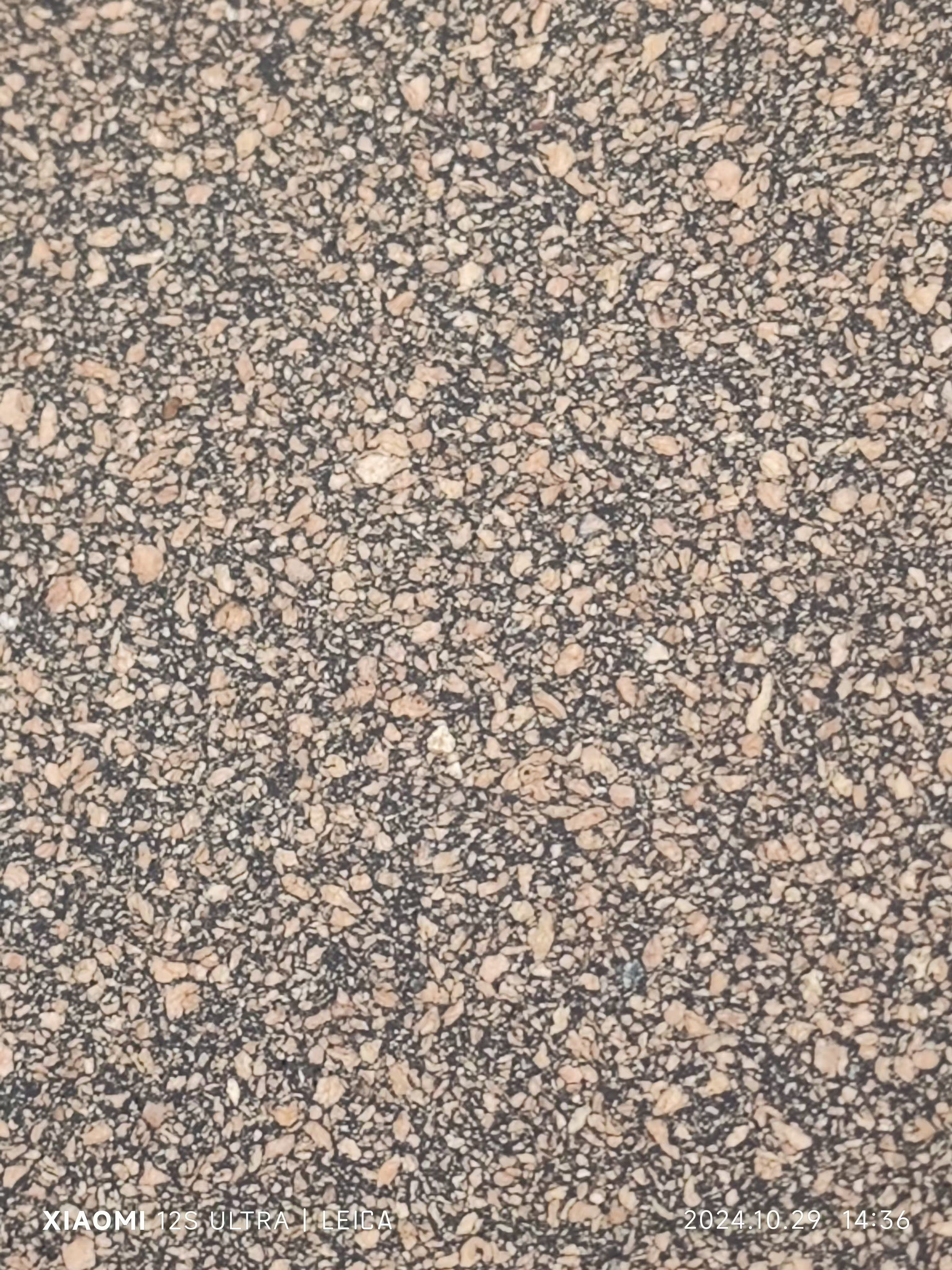

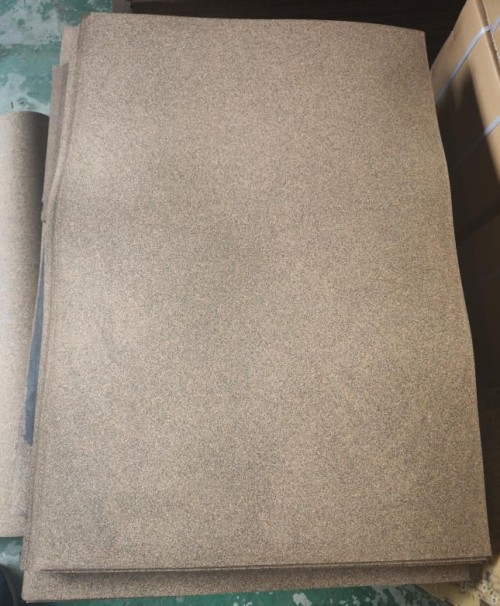

Oil Resistant Cork Rubber
Description
- Oil resistant cork rubber is a vulcanized product synthesized from natural rubber or synthetic rubber and cork, and is a new type of composite material in polymer materials.
- It retains the excellent properties of cork, such as aging resistance, oil resistance, low temperature resistance, high friction coefficient, good compressibility and resilience, while also incorporating the high elasticity of rubber.
Application Environment:
- Suitable for use with gasoline;

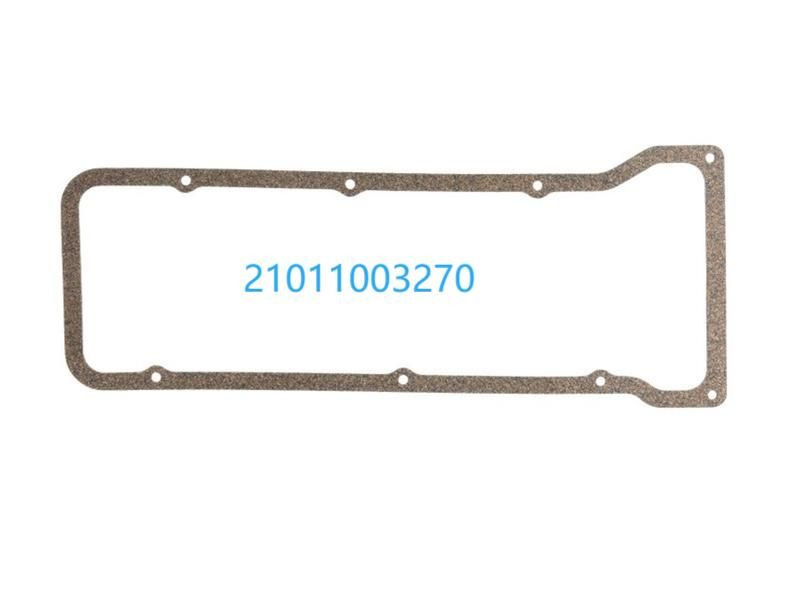

- suitable for low bolt loading flanges;
- suitable for flanges with relatively rough surfaces.
Product Features:
- Has excellent shock resistance, easy and safe use;
- High compressibility, good compressibility recovery, and good elasticity even after long-term compression;
- High compressive strength and high friction coefficient;
- Good impact resistance and shock absorption;
- Small deformation, excellent oil resistance, and aging resistance.
Technical Data
| NO. | ITEM | Test Standard | Unit | Value |
| 1 | Thickness | mm | 1.50±0.15 | |
| 2 | Density | g/cm2 | 0.8-1.2 | |
| 3 | Compressibility | Pressure head diameter 6.4mm, pressure 2.76Mpa | % | ≥20 |
| 4 | Recovery | % | ≥50 | |
| 5 | Transverse tensile strength | MPa | ≥2.5 | |
| 7 | Immersion IRM903 # oil transverse tensile strength | Temperature 149 ± 2 ℃, soak for 5 hours, then remove and place at 15-30 ℃ for 30 minutes | Mpa | ≥1.8 |
| 8 | Oil absorption rate of immersion IRM903 # oil | % | ≤15 | |
| 9 | Immersion of IRM903 # oil thickening rate | % | ≤15 | |
| 10 | Shore A Hardness | A | 70-90 |

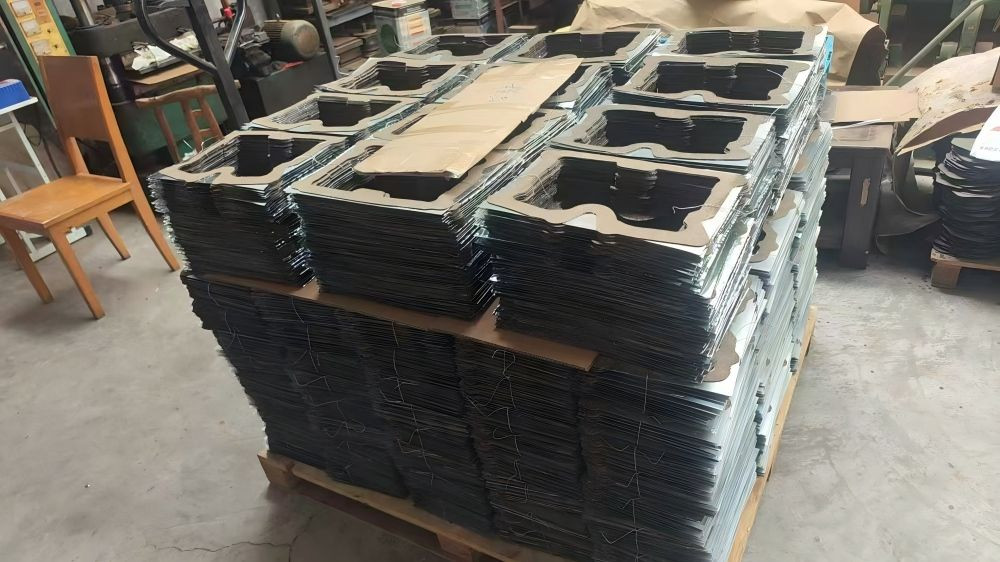

We can produce by adding metal plates to cork materials.
